America’s Wall-to-Wall Studio Series Commercial Golf Simulator Enclosure — 9'H x 16'W x 5'D

America’s Wall-to-Wall Studio Series™
Commercial Golf Simulator Enclosure

9'H x 16'W x 5'D (16:9)

The Ultimate Wall-to-Wall Golf Simulator Enclosure
for Commercial and Home Golf Studios

The America’s Wall-to-Wall Studio Series™ 9'H x 16'W x 5'D Commercial Golf Simulator Enclosure is a commercial-grade wall-to-wall golf simulator enclosure designed to fill the available width of your room while providing a professional, finished golf simulator environment.

This 9'H x 16'W x 5'D configuration provides a 16-foot-wide enclosure with a 5-foot depth and 16:9 screen ratio.

Designed for indoor golf facilities, commercial golf studios, golf training centers, teaching professionals, family entertainment businesses, and large home golf simulator rooms, the Wall-to-Wall Studio Series™ combines a large-format enclosure design with multiple layers of golf-ball protection and a professional finished appearance.

The golf impact screen is centered inside a Floating ViewPort, while the enclosure extends beyond the screen on both sides. Embedded angled interior netting and BlackOut side shades extend toward the Floating ViewPort, providing excellent left-to-right golf shot protection.

The recessed screen position also allows the rear of the enclosure to be positioned directly against a wall, helping maximize the usable space in your golf simulator room.

Built for real golf balls, real practice, golf instruction, indoor golf entertainment, commercial golf, and serious home golf simulation.

WHY DOES BUYING A GOLF SIMULATOR ENCLOSURE HAVE TO BE COMPLICATED?

Building a golf simulator should be exciting — not confusing.

Many golfers, golf professionals, and businesses have to determine:

✓ Which enclosure is right for their space
✓ How much width and depth they need
✓ How to protect the sides of the simulator
✓ How to support a large golf impact screen
✓ How to position the screen safely
✓ How to create a professional finished appearance

The America’s Wall-to-Wall Studio Series™ was designed to simplify that process.

Choose the enclosure configuration that fits your room, then build your simulator around it with the launch monitor, projector, simulator software, hitting mat, and other equipment that best fits your application.

Whether you're building a commercial golf studio or a large home golf simulator room, the Wall-to-Wall Studio Series™ provides a professional enclosure foundation without requiring a custom-built room around the enclosure.

BUDGET-MINDED OPTION: Save money by sourcing and cutting your 1" EMT poles locally from Home Depot, Lowe’s, or your local hardware store — see the Pole Cut Chart below — or choose our pre-cut 1" EMT Pole Kit that arrives ready to assemble.

You don't need to purchase every upgrade today; add our Available Upgrades later as your system grows.
Save Money.   Play Sooner.

Start Building Your Golf Simulator Enclosure In 3 Easy Steps

1. Choose Your Enclosure Size

Select the golf simulator enclosure configuration that fits your room, facility, or intended application.

This page features the 9'H x 16'W x 5'D (16:9) Wall-to-Wall Studio Series™.

2. Build Your Simulator Setup

Add your preferred launch monitor, projector, golf simulator software, computer, golf hitting mat, and other simulator equipment.

3. Start Playing, Practicing, Teaching, or Entertaining

Create a professional indoor golf environment for serious practice, golf instruction, commercial golf, family entertainment, or year-round home use.

FREE SHIPPING!
America’s Wall-to-Wall Studio Series™ Golf Simulator Enclosures — Average Shipping Time Is 14 Business Days.

Every kit is precision-manufactured, quality-control inspected, and carefully checked for accuracy, fit, and craftsmanship before it ships.

MADE IN THE USA BY AMERICAN WORKERS

Why Choose America’s Wall-to-Wall Studio Series™ Commercial Golf Simulator Enclosure?

Many golfers and businesses want a professional golf simulator experience but assume it requires expensive custom construction or a complicated room renovation.

The America’s Wall-to-Wall Studio Series™ was designed to provide a professional large-format golf simulator enclosure without requiring you to build a custom room around it.

Our Wall-to-Wall Commercial Golf Simulator Enclosures provide:

✓ A true wall-to-wall enclosure design
✓ Large-width construction
✓ A professional finished appearance
✓ Multiple layers of golf-ball protection
✓ Excellent left-to-right shot protection
✓ Floating ViewPort design
✓ Recessed screen position
✓ Compatibility with modern launch monitors and simulator systems
✓ Rigid structural support at critical spans
✓ The flexibility to customize your simulator around the enclosure

Unlike basic golf nets or unfinished DIY setups, the Wall-to-Wall Studio Series™ creates a true golf simulator bay designed for serious practice, instruction, entertainment, and commercial use.

KEY BENEFITS

Built for Serious Golf Practice

The America’s Wall-to-Wall Studio Series™ is designed for golfers who want more than entertainment.

It provides a dedicated golf simulator environment for:

✓ Swing mechanics
✓ Distance control
✓ Club gapping
✓ Golf instruction
✓ Game improvement
✓ Year-round practice

A dedicated golf simulator enclosure provides a consistent environment where you can practice regardless of weather, daylight, or course availability.

PROFESSIONAL APPEARANCE

A golf simulator should look as good as it performs.

America's Golf Simulator Enclosures™ are engineered differently.

The Wall-to-Wall Studio Series™ is trimmed across the top and sides with high-quality BlackOut fabric, helping conceal the enclosure structure while creating a clean, professional-looking golf simulator bay.

BlackOut side shades extend toward the Floating ViewPort, helping create a darker, more immersive simulator environment.

The result is a professional appearance appropriate for commercial golf facilities, teaching environments, family entertainment businesses, and premium home golf studios.

Launch Monitor Compatible

The Wall-to-Wall Studio Series™ is designed to work with modern golf launch monitors and golf simulator systems.

Create the setup that fits your goals, whether you are focused on:

✓ Golf practice
✓ Game improvement
✓ Golf instruction
✓ Indoor golf entertainment
✓ Commercial golf
✓ Club fitting
✓ Year-round golf

5-Foot Depth Design

This 9'H x 16'W x 5'D configuration provides a 5-foot enclosure depth for installations where efficient use of room depth is important.

Wall-to-Wall Design

The America’s Wall-to-Wall Studio Series™ is designed to fill the available width of your simulator space.

Traditional golf hitting bays often require additional space on each side of the impact screen to help protect surrounding walls from errant golf shots. The Wall-to-Wall Studio Series™ takes a different approach.

The main enclosure is built wider than the impact screen, allowing the embedded angled interior netting to extend from the sides of the enclosure toward the Floating ViewPort.

The golf impact screen extends beyond the Floating ViewPort on both sides, providing additional screen coverage and excellent left-to-right golf shot protection.

Floating ViewPort

The golf impact screen is centered inside a Floating ViewPort. A cable and bungee system supports the angled interior side netting and BlackOut side shades extending from the front of the hitting cage toward the sides of the ViewPort.

This creates a defined viewing area around the impact screen while the enclosure extends beyond the screen on both sides.

The result is a professional appearance combined with additional protection around the golf simulator hitting area.

Expandable Design

The Wall-to-Wall Studio Series™ provides a professional enclosure foundation around which you can build your golf simulator.

Choose the configuration that fits your room, then add the launch monitor, projector, hitting mat, simulator software, and other equipment that fits your needs.

FEATURES

✓ 9'H x 16'W x 5'D (16:9) configuration
✓ 16-foot-wide wall-to-wall design
✓ 5-foot enclosure depth
✓ Floating ViewPort design
✓ Heavy-duty golf impact screen
✓ Baffle net behind golf impact screen
✓ Embedded angled interior netting
✓ BlackOut top and side enclosure wrapping
✓ BlackOut side shades
✓ ShotDefender safety valance
✓ Hidden bungee screen tensioning system
✓ Recessed screen support structure
✓ 12" offset screen position
✓ SkyBridge Span Brackets
✓ Rigid Unistrut structural support at critical spans
✓ Designed to sit directly against the rear wall
✓ Professional finished appearance
✓ Designed for real golf ball impact
✓ Compatible with modern golf launch monitors and simulator systems
✓ Suitable for commercial and residential golf simulator installations

IDEAL FOR

✓ Indoor golf facilities
✓ Commercial golf studios
✓ Professional golf training centers
✓ Golf courses and club facilities
✓ Family entertainment businesses
✓ Teaching professionals
✓ Professional golf instructors
✓ Indoor golf instruction
✓ Winter practice facilities
✓ Large home golf simulator projects
✓ Dedicated golf simulator rooms
✓ Large garage golf simulator installations
✓ Basement golf simulator rooms
✓ Golfers upgrading from hitting nets
✓ Players focused on game improvement

BUILT FOR REAL PRACTICE

America’s Wall-to-Wall Studio Series™ Commercial Golf Simulator Enclosures are designed for golfers who want more than just a way to hit golf balls indoors.

They are built to create a dedicated practice environment for serious golfers, instructors, commercial facilities, and home simulator owners.

Whether you are preparing for your next round, working through swing changes, teaching students, improving ball striking, or enjoying indoor golf year-round, the Wall-to-Wall Studio Series™ provides a professional golf simulator solution built around real practice.

Golf Simulator Enclosure Specifications

America’s Wall-to-Wall Studio Series™ — 9'H x 16'W x 5'D
Height: 9 Feet
Width: 16 Feet
Depth: 5 Feet
Screen Ratio: 16:9
Enclosure Type: Wall-to-Wall Commercial Golf Simulator Enclosure
Screen Position: Recessed approximately 12" from the rear edge of the enclosure
Screen Design: Floating ViewPort
Side Protection: Embedded Angled Interior Netting
Screen Protection: Baffle Net Behind Impact Screen
Safety Valance: ShotDefender
Screen Tensioning: Hidden Bungee Tension System
Exterior Finish: BlackOut Top and Side Wrapper
Structural System: SkyBridge Span Brackets with rigid Unistrut at critical structural spans
Rear Installation: Designed to sit directly against the rear wall

Recommended Applications: Commercial golf facilities, indoor golf studios, golf training centers, teaching professionals, family entertainment businesses, and large home golf simulator rooms.

What’s in the Box

America’s Wall-to-Wall Studio Series™ 9'H x 16'W x 5'D Commercial Golf Simulator Enclosure

The Wall-to-Wall Studio Series™ includes the core enclosure components required to create your large-format wall-to-wall golf simulator.

Overlapping BlackOut Wrapper

Provides finished top and side coverage around the enclosure for a clean, professional appearance.

Side Panels

BlackOut side panels provide finished coverage around the enclosure and help create a darker, more immersive simulator environment.

Top Panel

The BlackOut top panel provides finished overhead enclosure coverage.

Pipe Sleeves

Provide finished fabric coverage around applicable enclosure structure.

Heavy-Duty Golf Impact Screen

The primary golf impact and projection screen for your simulator.

Baffle Net Behind Golf Impact Screen

Positioned directly behind the impact screen to provide an additional protective layer and help minimize screen recoil.

Embedded Angled Interior Netting

Covers the area from the sides of the Wall-to-Wall Studio Series™ enclosure toward the Floating ViewPort to provide left-to-right golf shot protection.

ShotDefender Screen Pole Protector

Hangs approximately 6" in front of the screen mounting structure to help prevent golf balls from directly accessing the screen support structure and reduce the possibility of ricochet.

Steel Connector Kit for 1" EMT Poles

Connects applicable 1" EMT poles together to build the enclosure structure.

1" EMT poles are not included by default.

Standard 1" EMT conduit may be purchased locally or ordered through America’s Golf Mats.

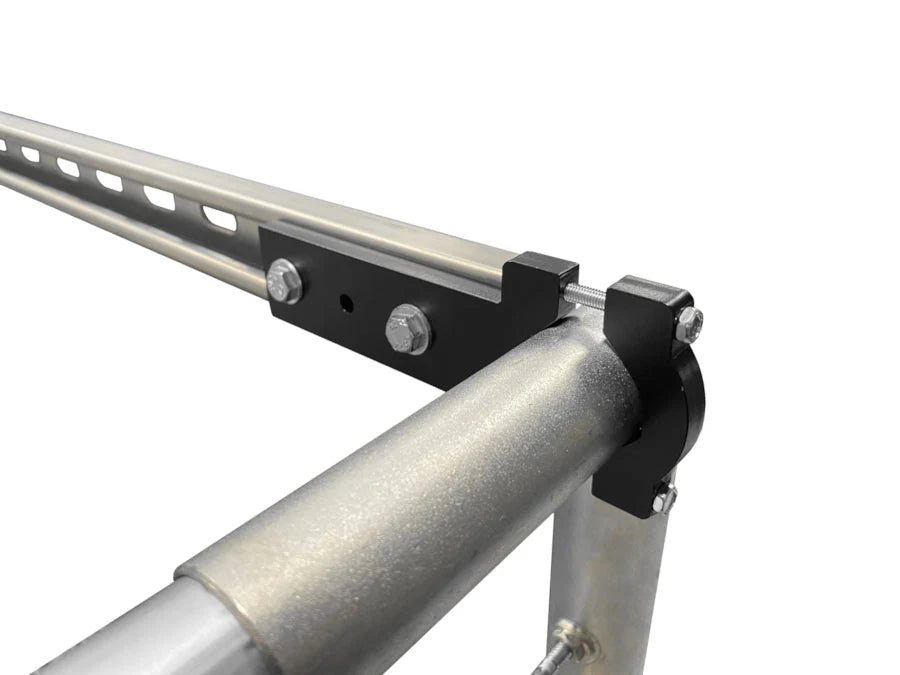

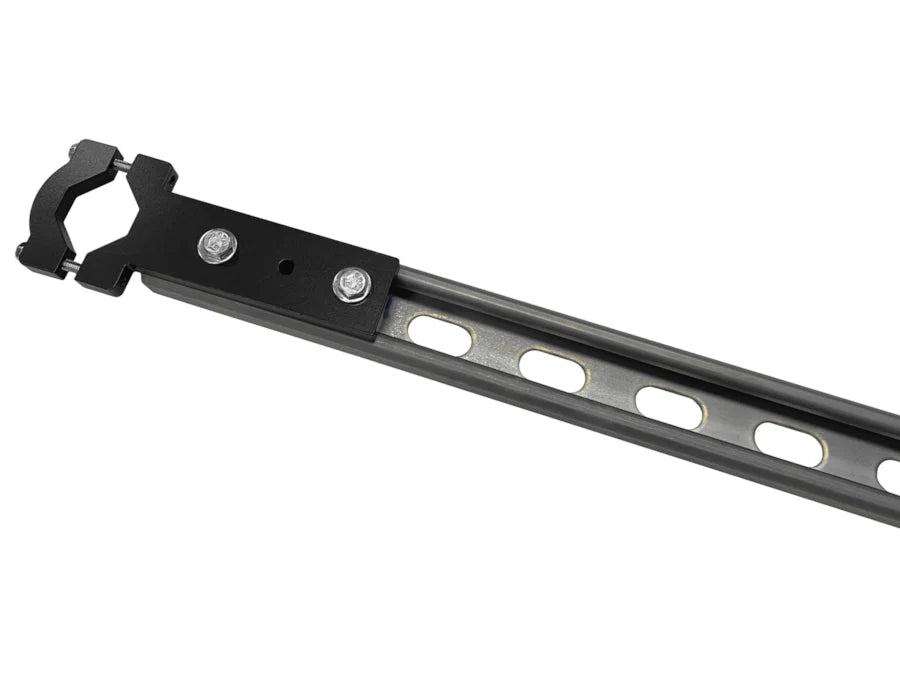

SkyBridge Connectors for Screen and Top Front Spans

Connect to rigid steel channel Unistrut for the critical screen-support and top-front structural spans.

Hidden Bungee Tension System

A concealed bungee tensioning system secures the golf impact screen and provides the tension required for a clean, flat projection surface.

Premium Impact Screen Included

A premium golf simulator impact screen should not be an expensive upgrade. Many enclosure systems start with an entry-level screen and require additional upgrades to achieve the image quality and performance golfers expect.

America’s Wall-to-Wall Studio Series™ includes a premium-quality golf impact screen from the start.

Benefits include:

✓ Sharper projected images
✓ Up to 50% brighter projection
✓ Excellent ball impact performance
✓ Designed for use with real golf balls
✓ Compatible with most golf simulator software and launch monitors
✓ Durable construction for repeated practice sessions

A better screen creates a better simulator experience.

Included Components

Every America’s Wall-to-Wall Studio Series™ Commercial Golf Simulator Enclosure includes:

✓ Premium golf impact screen
✓ Overlapping BlackOut top and side wrapper
✓ BlackOut side panels
✓ BlackOut top panel
✓ Pipe sleeves
✓ Baffle net behind golf impact screen
✓ Embedded angled interior netting
✓ ShotDefender safety valance
✓ Hidden bungee screen tensioning system
✓ Steel connector kit for applicable 1" EMT poles
✓ SkyBridge connectors for screen and top-front spans
✓ Hardware and enclosure components required for the applicable configuration

1" EMT frame poles and rigid Unistrut material are not included by default unless selected as part of the applicable frame pole kit.

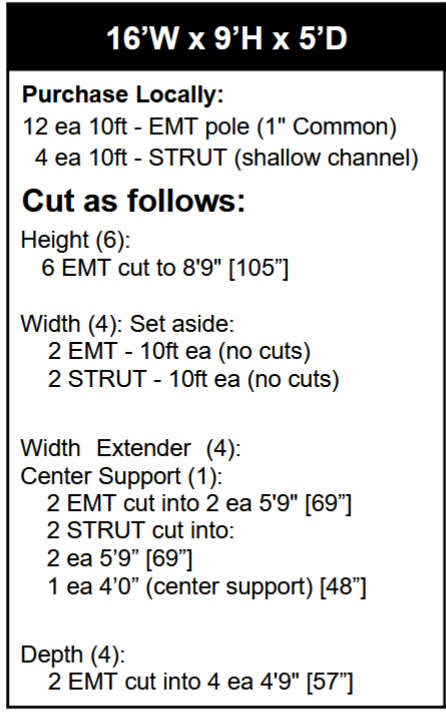

Frame Pole Options FOR YOUR GOLF SIMULATOR FRAMING KIT

Frame poles are sold separately, giving you the flexibility to choose the option that works best for your installation.

You can purchase standard 1" EMT conduit locally from Home Depot, Lowe’s, or your local hardware store using the required cut lengths shown in the assembly instructions.

For added convenience, you can choose our pre-cut 1" EMT pole kit, which comes with our SkyBridge Span Brackets and rigid steel Unistrut channel for the critical structural spans of the enclosure.

The pre-cut pole kit provides a convenient ready-to-assemble solution, while customers who prefer to source standard 1" EMT locally can do so to help reduce shipping costs.

Important: Pole lengths and structural requirements vary by enclosure configuration. Refer to the assembly instructions for the exact requirements for your selected Wall-to-Wall Studio Series™ enclosure.

Why Pay More?

A Premium Screen Shouldn’t Be an Upgrade.

With America’s Wall-to-Wall Studio Series™, a premium-quality golf impact screen is included from the beginning.

That means: ✓ Better image quality
✓ Up to 50% brighter projection
✓ More realistic simulator performance
✓ Excellent ball impact performance
✓ No unexpected premium-screen upgrade cost

Many golfers and commercial operators discover that lower-priced enclosure packages require additional upgrades before they achieve the experience they actually wanted.

The Wall-to-Wall Studio Series™ gives you a professional-quality foundation from the beginning.

That’s a BIG Deal for our customers!

Easy Assembly Instructions

Build Your Wall-to-Wall Studio Series™ Enclosure

The Wall-to-Wall Studio Series™ is designed for assembly using the enclosure components together with the applicable structural materials for your selected configuration.

Download Your Easy Assembly Instructions Here!

Because these are large-format commercial golf simulator enclosures, carefully review the assembly instructions before beginning installation.

Other Sizes and Depths Available

This product is the 9'H x 16'W x 5'D Wall-to-Wall Studio Series™ Commercial Golf Simulator Enclosure.

Need a different size?

America’s Wall-to-Wall Studio Series™ is also available in 16-foot, 18-foot, and 20-foot widths, with 5-foot and 8-foot depth options.

Available Add-Ons & Upgrades

Customize Your Enclosure as Your Simulator Grows.
